Hatches

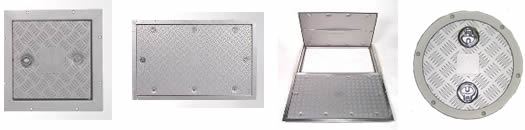

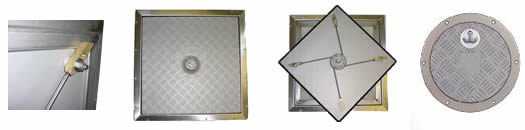

Anchor Hatches |
 P & E Manufactures top quality marine hatches and uses one of the best types of aluminum, the 5086-H112 grade, which has excellent corrosion resistance. They also anodize all of thier hatches to make them even more resistant against corrosion. The hatch flanges are built with 304 grade stainless steel and drain gutters can be installed for reinforcement and to prevent water damage.
|
|
Standard hatches |
Order# |
Cover Size |
Clear Opening |
Deck Cut out |
O.D. Flange |
ACH1212 |
12” X 12” |
10” X 10” |
12-1/2” X 12 -1/2” |
15-1/2” X 15-1/2” |
ACH1624 |
16” X 24” |
14” X 22” |
16-1/2” X 24-1/2” |
19-1/2” X 27-1/2” |
ACH2424 |
24” X 24” |
22” X 22” |
24-1/2” X 24-1/2” |
27-1/2” X 27-1/2” |
ACH2030 |
20” X 30” |
18” X 28” |
20-1/2” X 30-1/2” |
23-1/2” X 33-1/2” |
ACH2430 |
24”X 30” |
22” X 28” |
24-1/2” X 30-1/2” |
27-1/2” X 33-1/2” |
ACH2436 |
24” X 36” |
22” X 34” |
24-1/2” X 36-1/2” |
27-1/2”X 39-1/2” |
ACH2448 |
24” X 48” |
22” X 46” |
24-1/2” X 48-1/2” |
27-1/2” X 51-1/2” |
ACH10R 2DOG |
10” |
9” |
10-1/2” |
12” |
ACH10RT TEE |
10” |
9” |
10-1/2” |
12” |
Quick Release Hatches |
Order# |
Cover Size |
Clear Opening |
Deck Cut out |
O.D. Flange |
ACHQR1212 |
12” X 12” |
9” X9” |
12-1/2” X 12 -1/2” |
15-1/2” X 15-1/2” |
ACHQR1624 |
16” X 24” |
15” X 21” |
16-1/2” X 24-1/2” |
19-1/2” X 27-1/2” |
ACHQR2424 |
24” X24” |
21” X 21” |
24-1/2” X 24-1/2” |
27-1/2” X 27-1/2” |
ACHQR2030 |
20” X 30” |
17” X 27” |
20-1/2” X 30-1/2” |
23-1/2” X 33-1/2” |
ACHQR2430 |
24”X 30” |
21” X 27” |
24-1/2” X 30-1/2” |
27-1/2” X 33-1/2” |
ACHQR2436 |
24” X 36” |
21” X 33” |
24-1/2” X 36-1/2” |
27-1/2”X 39-1/2” |
ACHQR2448 |
24” X 48” |
21” X 45” |
24-1/2” X 48-1/2” |
27-1/2” X 51-1/2” |
ACHQR10 |
10” |
9” |
10-1/2” |
12” |
|
For information on ANCHOR BRAND hatches, click here.
|
Bomar Hatches |
ROSE MARINE sells and stocks various sizes of the BOMAR brand of plastic deck-plates and inspection hatches
|
|
The BOMAR round deck-plate offers the following benefits is available from 5-3/4” O.D. to 12-1/2” O.D.
- UV stabilized resin.
- Black, off-white or stark white colors available.
- "O" ring seal.
|
|
The BOMAR square and rectangular inspection hatches are available in sizes ranging from 10 1/4" x 14 1/4" to 14" x 31". They offer the following features and benefits:
- Low profile.
- T-Handle for easy operation.
- Stainless steel hinge pins.
- Fully gasketed
- UV stabilized resin
- Black, white, or off-white available
|
For more information on sizes and choices click here |
| |
|
|
 |
